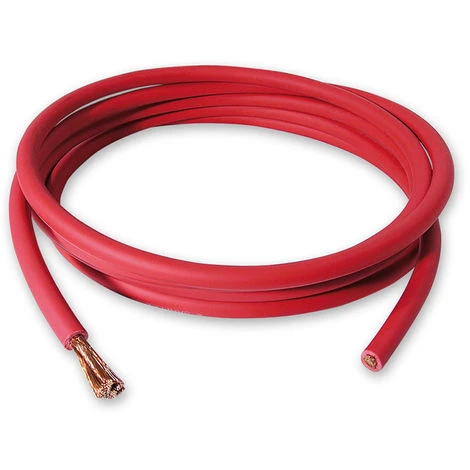

ERREBI GROUP Câble Fil Unipolaire Machine Soudage Sec. 16,00 Mmq Rouge

Code ErreBi: 22900
Vendu au mètre

Cables for welding machines
material: PVC
tipology: SINGLECORE
Applications: Welding Cables
Conditions of employment
For secondary side connection of powers sources for hand or automatic metal-arc welding for
secondary voltage typical of welding equipment.
Type of electrical conductor: Flexible red copper
Main rule: –
Self-extinguishing: EN 60332-1-2, IEC 60332-1-2

Description
PVC insulated cables for welding machines.

Review number:n. 4 – 23/2/2011
Nominal tension: 450/750 V
Type of outer sheath: TM2
Color of the outer sheath: Black
Operating temperature: +5° C | +70° C
Short circuit temperature: 160° C °C
Test voltage: 2500 V
Cable marking: ELFLEX (sect) mm² CE
Minimum radius of curvature: For cables with diameter up to 12 mm: 5 times the max. outer diameter in case of non-constrained motion and 4 times in case of fixed installation. For cables with greater diameter: 6 times the max. outer diameter in case of non-constrained motion and 5 times in case of fixed installation.
Insulation tolerance: ± 0,1
Sheath tolerance: ± 0,2

Scheda Tecnica

Couleur: Rouge
Diamètre externe: 8.70 mm
Voltage: 750V
Température de fonctionnement min.: +5°C
Température de fonctionnement max.: +70°C
Matériau d’isolation: PVC
Conducteur (matériel): Cuivre rouge
Section de câble mmq: 16.00 mmq
Taille des brins: 0.31 mm
Blindage: Non
Test de tension: 2500V
Résistance à la flamme: CEI 60332-1-2
Type d’emploi: Systèmes de soudage
Résistance du conducteur: <= 1.28 Ohm/Km
Type de produit: Câble machines souder
